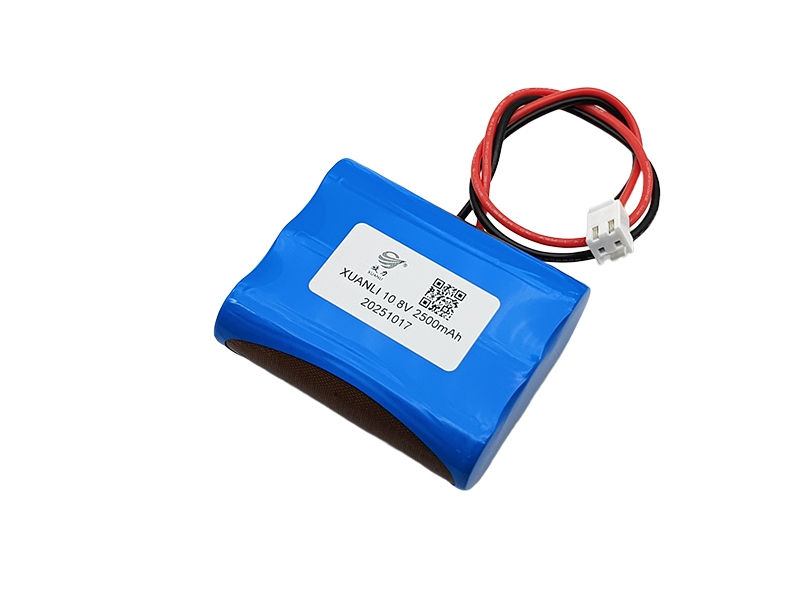

10.8V cylindrical lithium battery product model: XL 10.8V 2500mAh
Technical parameters of 10.8V cylindrical lithium battery (Specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
·Single cell battery voltage: 3.6V
·Nominal voltage of the battery pack after combination: 10.8V
·Single cell battery capacity: 2.5Ah
·Combination method: 3 series 1 parallel
·Voltage range of the combined battery after combination: 9.0~12.6V
·Capacity of the combined battery after combination: 2.5Ah
·Battery pack power: 27Wh
·Battery pack size: 22*56*69mm
·Maximum discharge current: <2.5A
·Instantaneous discharge current: 5~7A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
10.8V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
